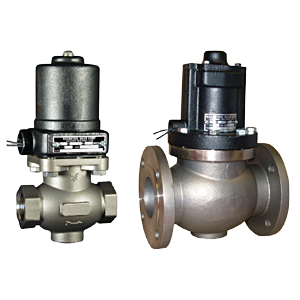

Stainless Steel Solenoid Valve

Name: Type "K" Full Port
SKU: 14K42
Availability: InStock

Type “K” Full Port

Normally Closed – 1/2″ to 3″ Pipe Size

Fluid Temp: -350°F to 400°F | Max. Static Pressure – 300 PSI
(Except valves listed for 500 PSI)

No Differential Pressure Required to Open

Operation

This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.

Application

To control the flow of Corrosive Fluids, Deionized Water, Condensate, Ammonias, Vegetable Oils, Fuel Oils, Cryogenics**, Flammable Liquids. Cryogenic fluids include liquid oxygen (-297°F), liquid argon (-303°F) and liquid nitrogen (-320°F). This solenoid valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

**Cleaning

Cryogenic valves are degreased and cleaned to keep them free of moisture
Oxygen valves are also “black light” tested

Get a Quick Quote

Pipe Size Inches

Max. Diff. PSI

Clear

End Connection
Fluid
Voltage
Enclosure
Flow Rate
Optional Features
Bottom Mount
Additional Options	HF-Hum Free DN-Din Connector NP-Nickel Plating LT-Leak Tight PT-Pilot Tap

Specifications

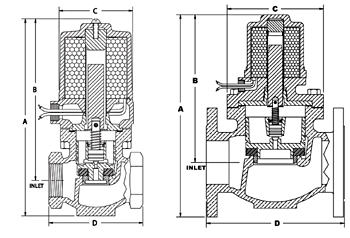

Pipe Size Inches	Max. Diff. PSI	Type No.	Watts AC	Amps Hold 120-60	Amps Inrush 120-60	Watts DC	Ship Wt. Lbs.	Dimension In Inches
								A	B	C	D NPT	D (Flanged)
								A	B	C	D NPT	150#	300#
1/2	110	14K42	25	0.4	1.2	18	8	7	5-7/8	2-7/8	3-1/4	6
	200	14K32	25	0.4	1.2	18	8	7	5-7/8	2-7/8		6
	300	29K52	45	0.8	2.4	23	10	8	6-7/8	3-1/2			6-1/2
	500	E29K62	45	0.8	2.4	23	15	8	6-7/8	4			6-1/2
3/4	110	14K43	25	0.4	1.3	18	8	7-1/8	6	2-7/8	3-1/2	6
	200	29K33	45	0.8	2.6	23	11	8-1/8	7	3-1/2		6
	300	129K53	65	1.2	3.9	33	11			3-1/2			6-1/2
	500	E129K63	65	1.2	3.9	33	16			4			6-1/2
1	110	16K44	25	0.4	1.5	18	10	8	6-5/8	3-1/4	4-1/8	5
	200	31K34	45	0.8	2.8	23	13	8-7/8	7-1/2	3-1/2		5
	300	131K54	65	1.2	4.2	33	13			3-1/2			6-1/2
	500	E131K64	65	1.2	4.2	33	18			4			6-1/2
1-1/2	115	35K46	45	0.8	3.2	23	17	10	8-1/8	4	4-7/8	6-1/2
	200	41K36	60	1.2	6.7	35	21	11	9-1/8	4-1/2		6-1/2
	300	141K56	85	2.0	10.0	45							7-1/2
	500	141K66	85	2.0	10.0	45							7-1/2
2	100	36K47	45	0.8	3.5	23	27	11	8-3/4	5-3/8	6	8
	200	42K37	60	1.2	7.4	35	32	12	9-3/4			8
	300	42K57	60	1.2	7.4	35							9
	500	142K67	85	2.0	11.0	45							9
3	100	44K49F1	60	1.2	8.8	35	68	13-3/4	10-1/2	6-5/8	N/A	9-1/2	N/A
	200	44K39F1	60	1.2	8.8	35	68					9-1/2	N/A
	300	144K59F3	85	2.0	13.0	45	81					N/A	12-1/2

Construction

(*Wetted parts – No Copper Bearing Alloys in contact with fluid)
*Valve Body – 304 Stainless Steel Globe Pattern – NPT ends
(For Flanged Ends go to Optional Features page)
*Piston – 303 Stainless Steel
Coil Enclosure – Malleable or Cast Iron,1/2 ” NPS conduit conn.
*Plunger – 430 Stainless Steel
*Pilot Valve – 303 Stainless Steel
*Bonnet Tube – 304 Stainless Steel
*Spring – Inconel
*Body Seal – Non Asbestos Gasket
*Orifice Seal – Glass Filled PTFE
*AC Shading Coil – Silver
*Stem Pin – Inconel
Coil – Encapsulated Class H, 18” leads
