Standard Solenoid Valves Overview

1-19 of 19 results

Type “A” Full Port

Normally Closed
1/2″ – 3″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 500 PSI
Type “AR” Full Port

Normally Open
1/2″ – 3″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 500 PSI
Type “D” Full Port

Normally Closed
3/8″ – 2″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 30 PSI
Type “G” Full Port

Normally Closed
1″ – 3″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 50 PSI
Type “GR” Full Port

Normally Open
1″ – 3″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 35 PSI
Type “J” Reduced Port

Normally Closed
3/8″ – 1/2″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 300 PSI
Type “JR” Reduced Port

Normally Open
3/8″ – 1/2″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 300 PSI
Type “K” Full Port

Normally Closed
1/2″ – 3″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 500 PSI
Type “KR” Full Port

Normally Open
1/2″ – 3″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 500 PSI
Type “L” Full Port

Normally Closed
1/2″ – 3″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 500 PSI
Type “LR” Full Port

Normally Open
1/2″ to 3″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 500 PSI
Type “M” Reduced Port

Normally Closed
3/8″ – 3/4″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 150 PSI
Type “MR” Reduced Port

Normally Open
3/8″ – 3/4″ Pipe Size

Fluid Temp: -350°F to 400°F
Max Diff. Press.: 135 PSI
Type “N” Reduced Port

Normally Closed
1/2″ – 3/4″ Pipe Size

Max Fluid Temp: 212°F
Max Diff. Press.: 300 PSI
Type “NR” Reduced Port

Normally Closed
1/2″ to 3/4″ Pipe Size

Max. Fluid Temp. – 212°F
Max. Static Pressure – 300 PSI

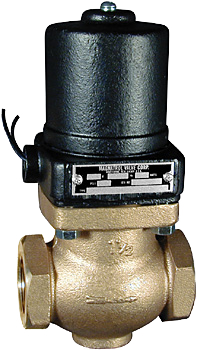

Type “S” Full Port

Normally Closed
1/2″ – 3″ Pipe Size

Max Fluid Temp: 400°F
Max Diff. Press.: 180 PSI
Type “SR” Full Port

Normally Open
1/2″ – 3″ Pipe Size

Max Fluid Temp: 400°F
Max Diff. Press.: 180 PSI
Type “W” Full Port

Normally Closed
1/2″ – 3″ Pipe Size

Max Fluid Temp: 400°F
Max Diff. Press.: 180 PSI
Type “WR” Full Port

Normally Open
1/2″ – 3″ Pipe Size

Max Fluid Temp: 400°F
Max Diff. Press.: 180 PSI
